A unique and fully automatic stretch wrapper that can be operated from the forklift with a wireless remote. Eliminates the need for the operator getting off and on the lift to attach and cut the film. Provides a huge labor cost savings while eliminating safety concerns.

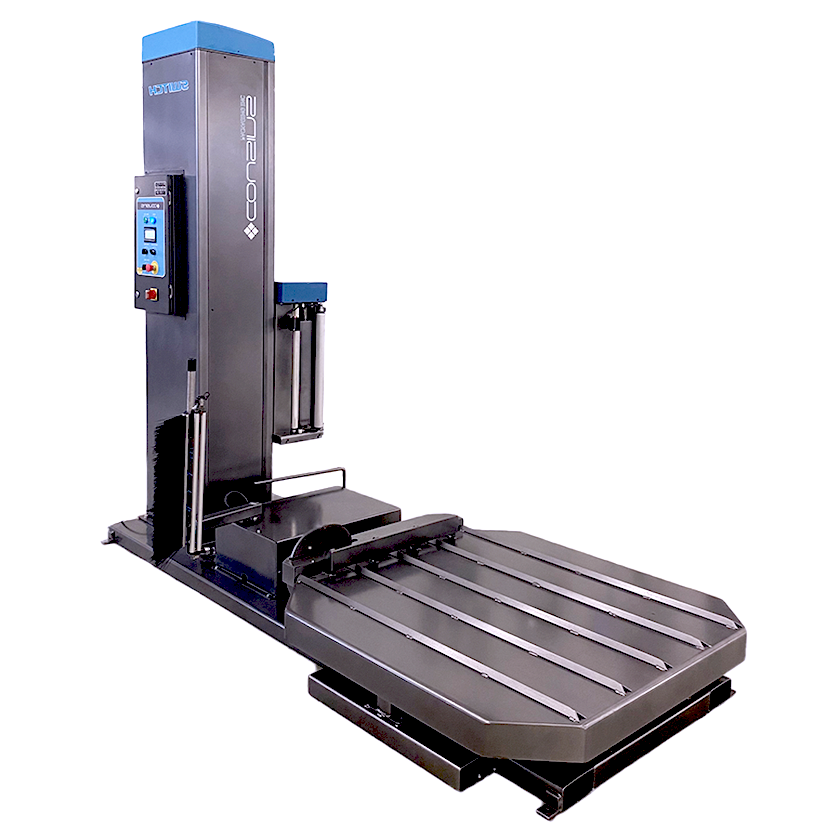

The High-Profile 3200 Platform Automatic Pallet Wrapper is built in North America with Brand Name Components. The 3200 has Features & Benefits that Surpass the Competition.
PRODUCTION SPEED:
1-40 loads per hour
NOTE: Process rates will vary with load size, number of wraps & forklift load/unload time
LOAD CAPACITY:
Maximum load weight:
4,500 lbs dynamic – 10,000 lbs static
Maximum load size:
50″ W x 50″ L (71″ max. load diagonal) x 80″ H
Minimum load size:
30″ W x 30″ L x 24″ H
TURNTABLE:
52″ octagonal 5/16″ thick formed steel plate turntable
4 point caster support system
Turntable height less than 12″ from floor
ANSI # 50 direct chain drive c/w chain tensioner
3-12 RPM rotational speed c/w soft start acceleration
1/2 HP AC variable speed motor
Final revolution deceleration and positive stop alignment
Front and back forklift ports for easy movement
FILM CARRIAGE ELEVATOR:
1/2 HP AC variable speed motor
ANSI #40 direct chain drive c/w shock dampener & Anti-Fall Safety Device
Maintenance free carriage guidance system
FILM DELIVERY SYSTEM:
Super Rapid Thread II ™ 20″ capacity pre-stretch film carriage
Special Film Threading Device
Uniquely orientates the sticky side of the film against the pre-stretch rollers and the inside of the load
Loadloc™ carriage with patented tension roller
1/2 HP AC variable speed motor
Fully electronic dynamic dancer corner compensation
33% to 313% fixed stretch capability
Pre-stretch ratio variable using easy sprocket change
Carriage Descent Obstruction Safety Shut-Off Device
Rapid Thread ™ Safety Door with auto power cut-off switch
Side mounted film carriage for operator convenience and safety
Superior film-to-roller contact area
Lifetime warranty on pre-stretch rollers
ELECTRICAL INPUT:
115 Volts 1 Phase 60 Hz 15 Amps
AUTOMATION:
“All-Electric – No Pneumatics Required”
Electro-mechanically actuated film clamp mechanism
Electro-mechanically actuated film tail cut/wipe arm mechanism
Ni-chrome impulse hot wire film cut off c/w automatic periodic cleaning cycle
CONTROL:
PANASONIC PLC with Touchscreen Operator Interface
Power Off – On – Reset switch & Power On indicator light
Single-button Auto Wrap Cycle Start/Pause
Cycle Pause for applying top sheets
Reinforce Wrap control for mid-wrapping
Emergency Stop button
Turntable Jog button
Film Carriage Lower & Raise buttons
Film Clamp Open/Close button
Film tension (Force-to-Load) control
Separate film carriage raise & lower speed controls
Variable turntable speed control
Triple beam auto load height sensing photo-eye, detects dark or shiny loads
Separate 1 to 12 revolution top & bottom wrap control
Selectable Reduced Film Tension parameters for wrapping top and/or bottom of load
A – B – C wrap program selector with capability to input and store unique wrapping parameters for each program
Wireless remote start/stop control
Optional lanyard, pendant or pedestal control station available
NEMA 12 control panel enclosure
Non-proprietary UL/CSA approved components
STRUCTURAL:
All structural steel construction
Forklift truck portable base structure design
lifting tubes included for front and rear access
Structural steel tube machine tower with sheet metal covers
Electro-static powder coated paint finish
MISCELLANEOUS OPTIONS:
Starter Spare Parts Kit – recommended minimum quantity of parts to stock for this specific machine
Additional transmitter for the wireless remote start/stop control (one included with the machine)
Tower extension for 110” wrap height capability (standard is 80”)
NOTE: All machines with tower extensions will be hinged and shipped knocked-down
Dusty Package – Complete sealing of the control panel and use of sealing rings on any conduit entries into the control panel
Cold Weather Package - down to 32°F
Broken film/out of film detection c/w automatic machine reset and fault indication
Lanyard pull switch - mounts to ceiling (in place of standard wireless remote)
Beacon light with red & green lens – indicates run, clear or fault conditions
LOAD CELL & SCALE PACKAGES:
Platform Scale Package – SureWeigh Platform Scale with GSE250 Digital Weight Indicator
NOTE: Machine with base extension option requires a factory quote
Built-in Load Cells Scale Package - with GSE250 Digital Weight Indicator
NOTE: Machine with base extension option requires a factory quote
Upgrade digital weight indicator from GSE250 model to Matrix 365. The standard model GSE250 indicator is for load weight only and communication features are not available. Matrix 365 indicators have programming features for printers and communication capability.
AIR FLOW & PALLET LOCK:
Pallet Lock Roping Device – the most effective method of securing the load to the pallet. Easily programmed using the touchscreen to apply the roped or normal full web film for additional holding force where needed, air flow if required and to prevent film breakage on sharp product or pallet corners. AIR REQUIRED – Includes a filter-regulator unit and quiet air compressor.
Delete the filter-regulator unit and quiet air compressor included in option OPLRD if customer supplies the necessary pneumatic requirement.
Automatic Slitting and or Roping Device – A wide variety of automatic film slitting and or roping devices are available upon request.
